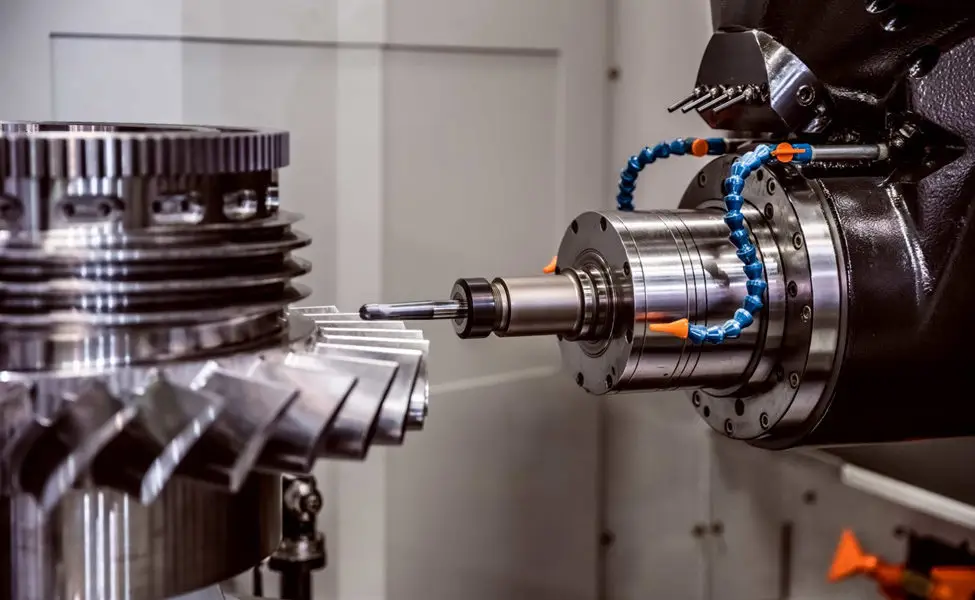

Modern manufacturing is based on precision CNC milling. It integrates sophisticated equipment, computer instructions, and high-speed motions to create superior-quality CNC-machined parts with accuracy and consistency.
This guide deals with the milling process, CNC milling tolerances, tools, materials, operations, advantages, and professional precision milling services.
CNC milling is a subtractive manufacturing technology that involves cutting away material on a solid piece to get the desired shape. The cutting tools are controlled by a computer program that defines the tool paths, feed rates, spindle speed, and depth of cut.
The machines are flexible and can produce flat surfaces, intricate 3-dimensional forms, pockets, slots, grooves, holes, and threads.
Their materials of interest cut across metals, plastics, and composites. CNC milling is commonly applied in highly critical industries with typical tolerances of between -0.001 to + 0.005 inches.
Category | CNC Milling | CNC Turning |
Cutting Tool | Rotating multi-point tool | Single-point stationary tool |
Process | Removes material from a fixed workpiece using rotating cutters | Removes material from a rotating workpiece using a stationary tool |
Applications | Complex shapes, slots, holes, 3D parts | Cylindrical parts like shafts, bushings, and bolts |
Features | Pockets, threads, contours, chamfers | Threads, grooves, tapers, cylinders |
Advantages | High precision, flexibility, and works with many materials | Efficient and cost-effective for cylindrical high-volume production |
Limitations | Higher setup cost, more waste, longer tool change | Limited to cylindrical parts, less versatile for complex geometries |
Both processes are essential, but for complex and detailed parts, precision CNC milling offers more flexibility.
CNC milling machines are designed using a number of important components that guarantee precision, effectiveness and versatility. All the parts are significant in regulating movement, cutting, and general performance. The key features and their functions are listed below.
Component | Primary Role | Notes |
Worktable | Holds the workpiece securely | Must stay clean and stable |
Saddle | Supports the worktable | Ensures alignment |
Knee | Adjusts worktable height | Enables variable depth of cut |
Column | Provides structural support | Maintains stability during milling |
Spindle | Rotates and controls the tool | Directly affects cut quality |
Machine Tool | Interacts with the workpiece | Varies based on the operation |

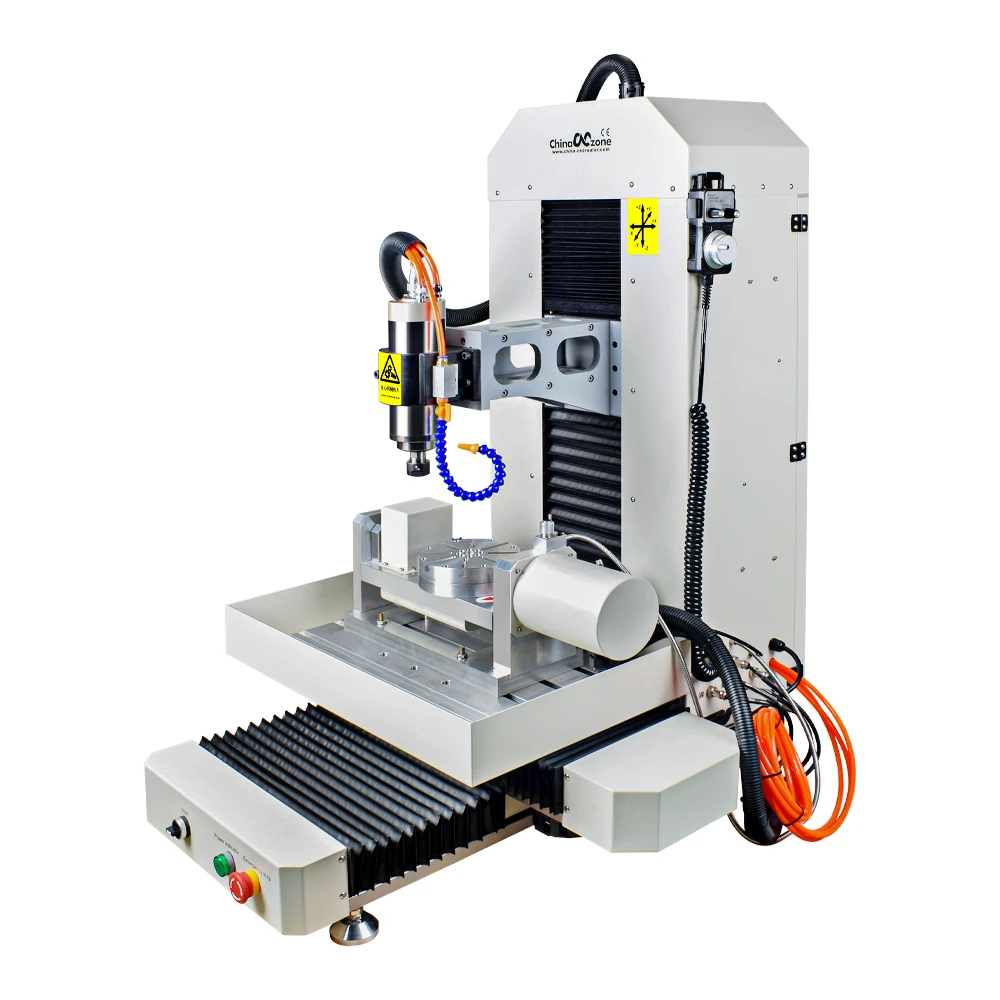

Small CNC mills are small machines that are designed to suit workshops and small businesses. They have the ability to operate with metals, plastics, and wood without compromising on accuracy. These are usually applied in custom parts of machinery, rapid prototyping, jewelry, decorative objects, and parts used in hobby models.
Their versatility helps them serve as a good place to start learning precision CNC milling, with both practical uses and affordable alternatives to beginners and small scale production requirements.
CNC milling is based on technical parameters which regulate the accuracy, velocity, and quality of the surface. This knowledge can be used to obtain precise outcomes and enhance the performance of machining operation.
Coordinate System and Axes
CNC milling is commonly utilized with the X, Y and Z axes; these three are used to control horizontal movements, vertical motions and depth movements. The more complex geometries and multi-sided machining can be accomplished using the additional rotational axes A, B and C that are added to advanced machine setups.
Feed Rate & Spindle Speed
The rate that the cutting tool travels on the workpiece is called feed rate and can be stated in inches per minute. The rotational speed of the cutting tool in revolutions/minute (RPM) is called the spindle speed. A balance between the two settings is required to have smooth finishes, accuracy in dimensions, and reduce tool wear.
Tool Path Strategies
The tool paths in CNC milling are varied on the basis of part design. Extrusion uses contours on the same side as profile cutting, pockets on the opposite side, and ramps on the same side to cut into internal pockets, easing the cutting pressure. The strategy used directly influences machining efficiency, accuracy and quality of the surface.
CNC Milling Tolerances
CNC milling tolerances depend on the material and dictate the extent to which the final part is within the design specification. Although metals can be tighter (such as aluminum and brass), the plastics need more room since they expand and contract.
Aluminum | ±0.05 |
Stainless Steel | ±0.08 |
Brass | ±0.05 |
Plastics | ±0.15 |
Cooling & Lubrication
CNC milling requires the use of cooling fluids that cool the heat produced during cutting. They also serve as lubricating agents, reduce friction, increase tool life and enhance the surface finish of the machined component.

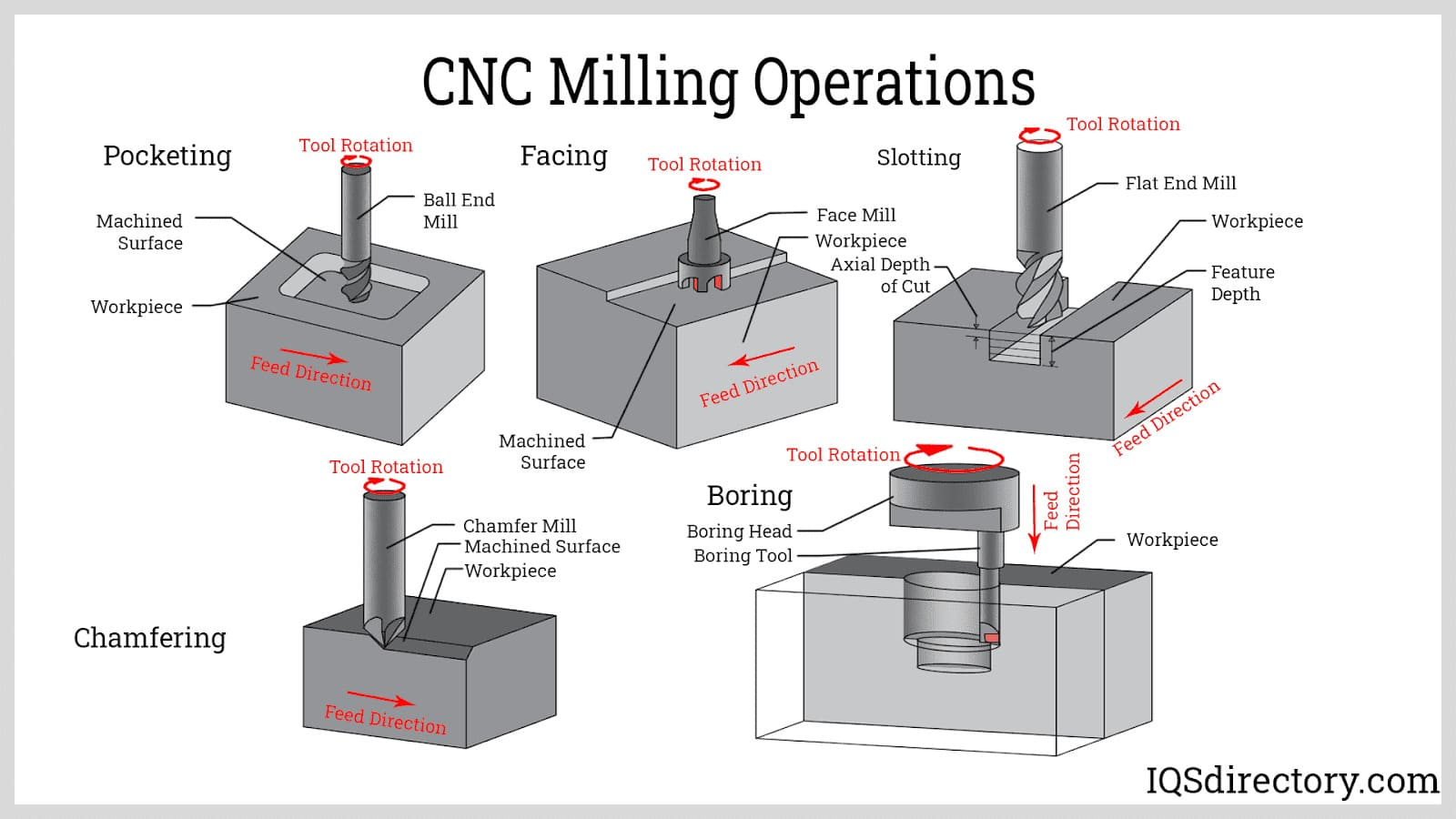

CNC milling involves various processes that are aimed at particular forms and needs. All of them involve the use of specific tool movements to obtain the correct surfaces, profiles, and cavities.
Face Milling
Face milling is a process that is applied to produce smooth finishes and high accuracy on flat surfaces. It is widely used in the machining of cylinder heads and engine blocks and other large flat machining.
Peripheral Milling
Peripheral milling cuts material off of the sides of a work piece. The process is very common in manufacturing gears, splines, and other accurate profiles.
Slot Milling
Slot milling is developed to make grooves of varying depths and widths in a part. It is perfect when it comes to keyways, fastener slots, and mechanical assembly channels.
Plain Milling
Plain milling- plain milling is used to cut flat planes parallel to the cutter axis. It is among the most popular procedures that are used to provide simple flat surfaces on a workpiece.
Pocket Milling
Even closed cavities like rectangle, circle or irregular-shaped are machined by pocket milling. It is mostly used in mold making and component housing designs.
Form Milling
Form milling involves contour matching cutters in order to create complicated shapes and profiles. This technique is also necessary when it comes to components in need of curved surfaces, tailored lines or patterns.
Steps to choose material:

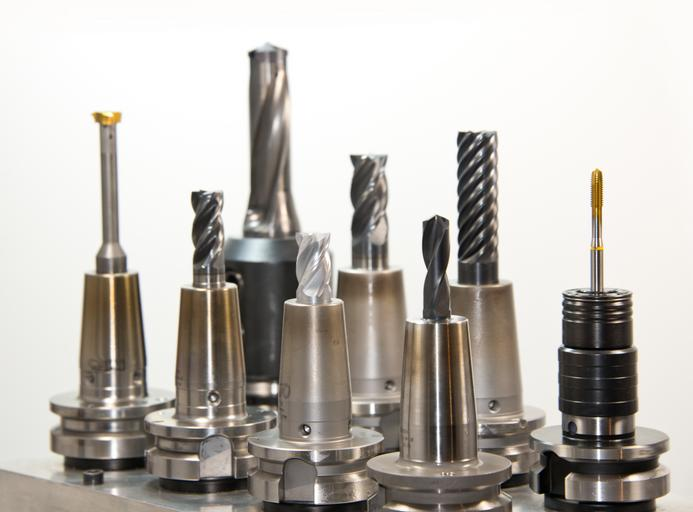

CNC milling is based on dedicated tools to obtain accuracy and efficiency. All the tools are aimed at some certain task, and they can be used to cut a lot of material or to carve subtle details.
Tool | Description | Primary Use |
Face Mill | Large cutting edges | Flat surfaces |
Shell Mill | Mounted with arbor | Heavy material removal |
Ball Cutter | Hemispherical tip | Concave shapes, 3D contours |
End Mill | Cuts on sides and end | Slots, drilling, profiling |
CNC milling is very precise with a tolerance of up to 0.001 inches. It has high degree of repeatability, which makes it applicable in large production cycles where consistency is of great concern. The process is able to deal with complicated shapes, contours, and details of a massively wide range of materials including metals, plastics, ceramics and composites. CNC milling saves labor and increases the speed of production due to effective automation, as well as minimizing the operational costs in the long term.
CNC milling, as advantageous as it is also has its limitations. The installation and training expense is also costly which may be a hindrance to smaller companies. It cannot fit oversized parts and might be uneconomical to use in a small batch run. The machines need experts to program and watch over as well as maintain them. Moreover, there is continued maintenance cost to the total operating cost.
The CNC milling services are done in stages to provide the correct parts. It starts with the design development by use of CAD software that is later translated into CNC. A machine is loaded with a required material and cutting tools and then the milling process commences as per the programmed tool paths. Parts are then finished at the surface including polishing or painting after machining. Lastly, before shipment and delivery, inspection and quality check are conducted to make sure that there is accuracy.
Outsourcing is time- and resource-saving to manufacturers and businesses that require a high degree of precision CNC machining. Prolean offers high precision milling services at reasonable prices, at the best machinery and with experienced engineers. Prolean guarantees accuracy, efficiency and quality whether you require prototyping, low volume or mass production.
Precision CNC milling is a potent procedure of producing precise, repetitive and high quality CNC machined parts. Based on the milling process and tolerances of tools, materials, and parameters, this guide gives us an overview of it all.
