Figure 1: High-precision aluminum prototypes enable rapid iteration and strict compliance with industrial performance standards, reducing development costs by 30%.
In the realm of industrial equipment development, the use of prototyping may end up producing inaccurate data. For instance, using CNC aluminium prototyping to make aluminium prototypes can play a crucial role within the process of developing industrial equipment. The prototypes are made with aluminium and are produced through CNC aluminium prototyping. This ensures that the prototypes are made with performance that is almost equal to that of finished products.
The American Society of Mechanical Engineers (ASME) points out regarding prototype testing in product development,aluminium prototypes are essential for testing purposes in industrial machinery, mostly for their higher strength-to-weight ratio, excellent machinability, and high heat conductivity. These factors are very essential for machinery and tools where robustness and light materials as well as proper cooling are required. Testing in machinery and tools using techniques such as 3D printed plastics will not be able to provide the original quality and performance of materials and machinery tests as done in CNC Aluminium Prototyping, as it provides excellent precision and quality to the prototypes and allows them to behave in the exact same manner as the final product will in real-life scenarios.

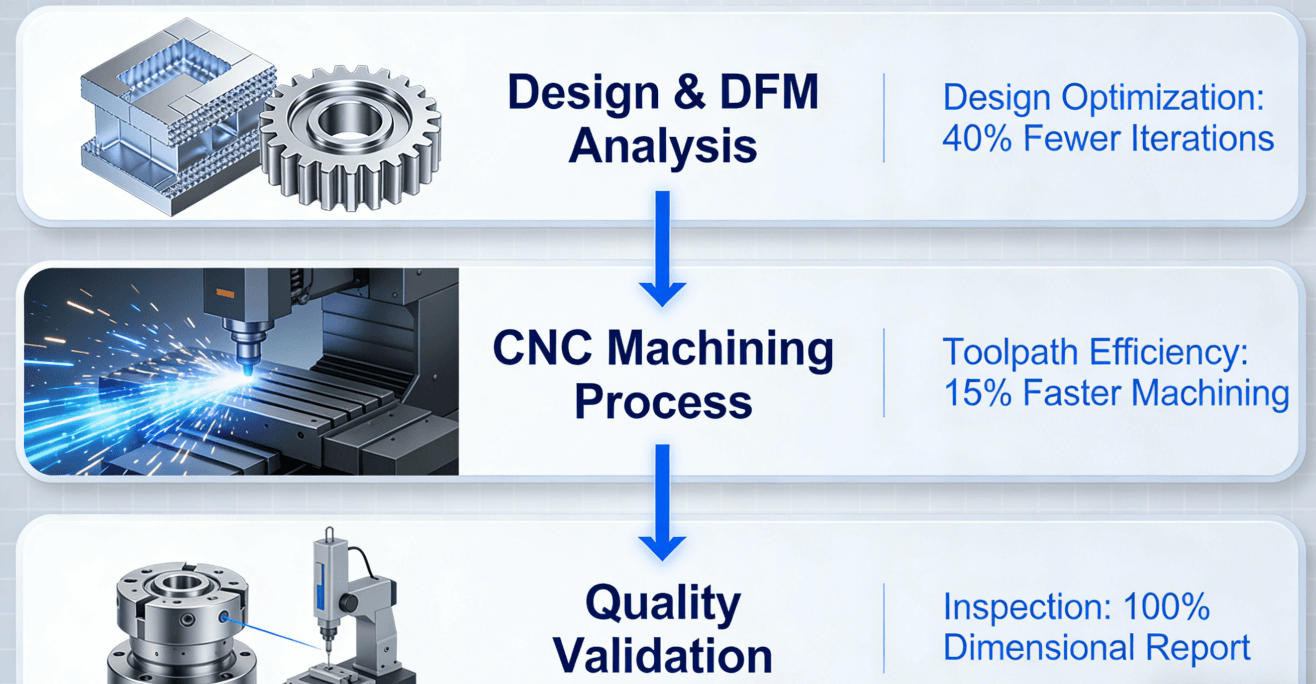

Figure 2: An integrated approach to aluminum prototyping ensures seamless transition from design to quality assurance, maximizing resource efficiency.
Aluminum Process Optimization entails various stages, each providing for cost savings. A structured strategy including Design for Manufacturability, material selection, CNC programming, Machining, and Inspections translates into huge cost savings without compromising the accuracy of the prototypes.
Design Optimization represents the first defense mechanism against cost optimization because professional DFMA analysis addresses and fixes design errors before costly machining mistakes and rework occur. Fillet radius standardization to reduce tool changes, or feature combination to reduce geometry, cuts machining time straightforwardly. Material selection, including aluminum grade selection: specifying materials according to prototype function, such as using 6061 aluminum alloys for general structural prototypes and 7075 for prototype-related to high-stress components, avoids making costly material mistakes.
CNC machining rapid prototyping optimizes expenses by employing the following technical measures: Minimizing setups, optimizing cutting paths, and inspecting for quality reduces the time spent on material and personnel. For example, 5-axis CNC machines facilitate the production of complex shapes with only one machine change, reducing the potential for errors and the loss of time resulting from multiple reposition. The most advanced computers aid in the production of the most superior cutting paths, maximizing the cutter's material removal rate and extending its lifespan.
The difference that design optimization makes in cost management is dramatic. Professional solutions can prevent potential problems before machining, such as:The use of cutting force simulation to predict and prevent workpiece deformation, or collisions simulation. These proactive measures not only help save costs, but lead times are reduced too, and this is why rapid prototyping with CNC machining is the best method for prototype manufacturing.
Controlling the spindle speed, feed rate, and depth of cut helps in increased production efficiency with better quality. High-speed machining methods can also aid in improving the surface finish, thus less post-process processing will be required.
The Handling multiple parts at once or combining different designs into one batch reduces setup and fixturing expenses, making it cheaper per prototype on average.
Choosing the proper method for conducting a prototyping process for the industrial equipment requires comparison between CNC aluminium prototyping and 3D printing. The two techniques have various advantages which can be applied in distinct scenarios. The most important step is to correctly identify the main task of the future prototype.
When it comes to components that need to have loading capabilities, motion tests, or final simulations of final aluminium products, no one can possibly replace CNC aluminum prototyping. This process can create a denser structure with properties not achievable through 3D printing. When it comes to selecting a service provider offering quality industrial equipment machining services, a reliable one would recommend the process of 3D printing for internal geometries, while CNC machining is better suited for accurate prototyping.
Table: Comparison between CNC Machining and 3D Printing for prototyping.
For aluminum prototypes to ensure Production quality and precision, there has to be a certain quality control process. This involves the usage of sophisticated machinery, which may include 5-axis CNC systems capable of producing simple and complex geometry within a single fixture, thereby preventing the accumulation of errors that may occur with multiple fixturing.
A crucial part of quality assurance is precision metrology. The use of a Coordinate Measuring Machine in the field of precision metrology helps verify the finished prototype in terms of full dimensions while ensuring that all the details are according to the design. While talking about the dimensions where precision is required, the accuracy attained in measurements goes up to ±0.003mm.
Surface treatments such as hard anodizing done as part of aluminium plating services greatly improve the resistance to wear and corrosion of the prototype. This brings the prototype close to being production-ready. Proper finishing of the surface of the prototype enhances its functionality while providing an accurate test environment.
First, partnering with an ISO 9001 certified supplier for quality or an AS9100D certified supplier for aerospace would be essential in achieving quality prototypes of aluminum material. This will allow the supplier to implement an effective quality management system that will design products within the required standards. For this purpose, an Aluminium Prototypes Guide would be the best reference guide for the team.
A robot arm maker used CNC aluminium prototyping for testing a high-load joint. Rapid prototyping allowed the rapid design change process based on a weakness identified in the tests. The final design, an optimised part produced with professional industrial equipment machining services, improved its life span by 100% and cut its weight by 15%.
Due to the fact that two complete design cycles can be accomplished in only 10 days, the CNC aluminum prototypes proved the fundamental advantage of rapid prototyping: accelerated design iteration and risk reduction. Such design, which helps in early risk or failure detection, eliminates the risk of costly product recalls, thereby adding a direct value to market competitiveness.
In contrast to the traditional approach, by using CNC aluminum prototyping, the development time has been reduced by more than 60 percent, and hence, the marketplace entry has become possible much earlier.
The early discovery of the error in the design saved money that would have been incurred by changes to the molds and even a product recall. A considerable cost savings was thus achieved.
Other sectors of advanced manufacturing display similar successes. Within the aerospace industry, for example, makers of sports parts requiring high accuracy have relied on CNC aluminum prototypes in testing essential high precision sports components. Also, in the medical devices industry, The American Society for Quality (ASQ) points out regarding early failure detection aluminum prototypes have aided in the design for better ergonomics and functionality of surgical tools. All these illustrations show the usefulness of CNC aluminium prototyping in many manufacturing industries and applications.
Aluminum prototypes have advanced from being "samples" to becoming an essential strategic resource in the development of industrial equipment. They present an accurate physical realization of the design, thereby providing a firm foundation for design validation, cost management, and time to market. The incorporation of precise production knowledge in the early development phase of the equipment represents an important aspect of acquiring a competitive advantage.
If your industrial equipment project requires a more reliable and efficient method of prototyping, it may be helpful to contact a group of people with professional knowledge about precision manufacturing. JS Precision is a company with significant expertise in this area and can supply professional services for aluminum prototyping for industrial equipment projects.
This article was contributed by a senior engineer with over 15 years of experience in precision manufacturing. The skill set of the engineer ranges from the development of complex components to aluminum prototyping in aerospace and high-end industrial applications.
Q1: What materials are most commonly used in aluminum prototype fabrication, and how do I choose?
A1: "6061 and 7075 are the best alternatives available." While the strength level and machinability of 6061 are acceptable and affordable, when it comes to strength, nothing surpasses the strength properties of material 7075. The best material would be chosen after carefully analyzing strength properties, hardness properties, machinabilities, and cost considerations.
Q2: What is the accuracy of alumunium prototype production?
A2: With the technology of CNC aluminium prototyping, the aluminum prototyping tolerance is ±0.025mm to ±0.05mm. It is even possible to go beyond this tolerance, depending on the feature, for the testing and assembling of the majority of industrial equipment.
Q3: What are the benefits of surface treatment processes like "aluminium plating" used on prototypes?
A3: Hard anodizing enhances aluminum prototype hardness, wear, and corrosion resistances on surfaces because of aluminum's nature and the hard anodizing process itself. It increases the life of a prototype and provides an accurate representation of the final product regarding its surfaces.
Q4: How long, typically, is the lead time for the production of aluminum prototypes?
A4: For standard components, the production time of finished parts from finalized drawings will normally take 5-10 working days. For urgent projects, by efficiently utilizing the rapid prototyping process, certain parts can be produced within 72 hours.
Q5: In what way is distortion controlled during the aluminum prototyping process?
A5: Professional suppliers use a combination of process solutions to control and reduce machining distortion. These include optimized fixtures, symmetrical machining patterns, controlled cutting conditions, and stress relief actions to guarantee overall accuracy.
